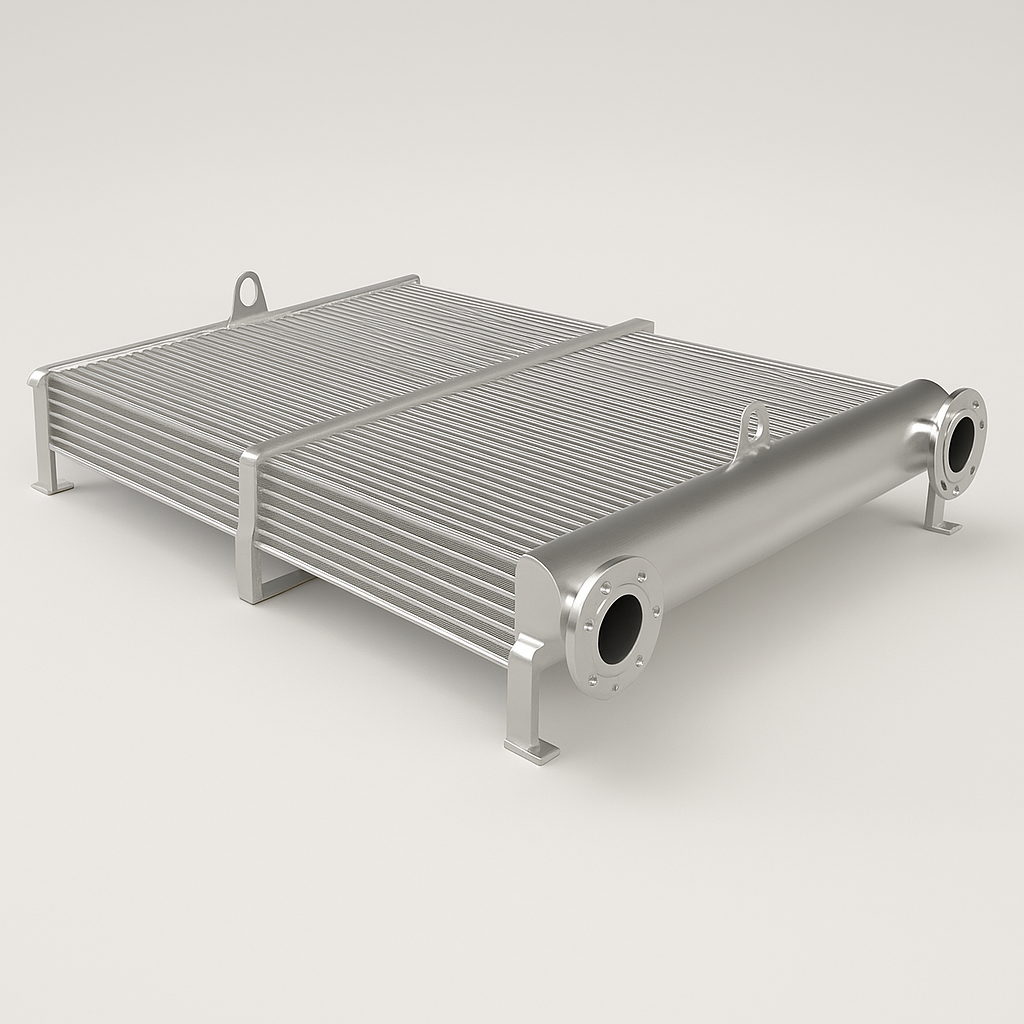

SEA WATER COIL
At KRN Heat Exchanger & Refrigeration Ltd., our Sea Water Coils are engineered to withstand the most demanding marine and coastal environments. Designed to operate with seawater as the cooling medium, these coils ensure efficient heat transfer, durability, and long service life in highly corrosive conditions.
Ideal for marine HVAC systems, offshore platforms, coastal industries, and shipboard cooling applications, KRN Sea Water Coils provide reliable temperature management while reducing maintenance requirements and ensuring compliance with international marine standards.
Design & Construction
- Tube Material: Cupro-nickel (90/10 or 70/30), stainless steel, or titanium for superior corrosion resistance
- Tube Diameters: 3/8” (9.52 mm), 1/2” (12.7 mm), 5/8” (15.88 mm)
- Wall Thickness: 0.28 – 1.2 mm, optimized for marine duty
- Fin Material: Epoxy-coated aluminum fins, copper fins, or hydrophilic fins for enhanced anti-corrosion performance
- Fin Thickness: 0.15 – 0.25 mm
- Fin Pitch: 2.0 – 3.2 mm (customizable for seawater cooling efficiency)
- Rows Available: 2–10 rows depending on duty requirement
- Casing/Frame: Stainless steel (SS 316/304) or epoxy-coated galvanized steel for extended life in salty environments
- Testing: Hydrostatic and pneumatic testing up to 400 psi (27.5 bar), plus salt spray corrosion testing for marine reliability
