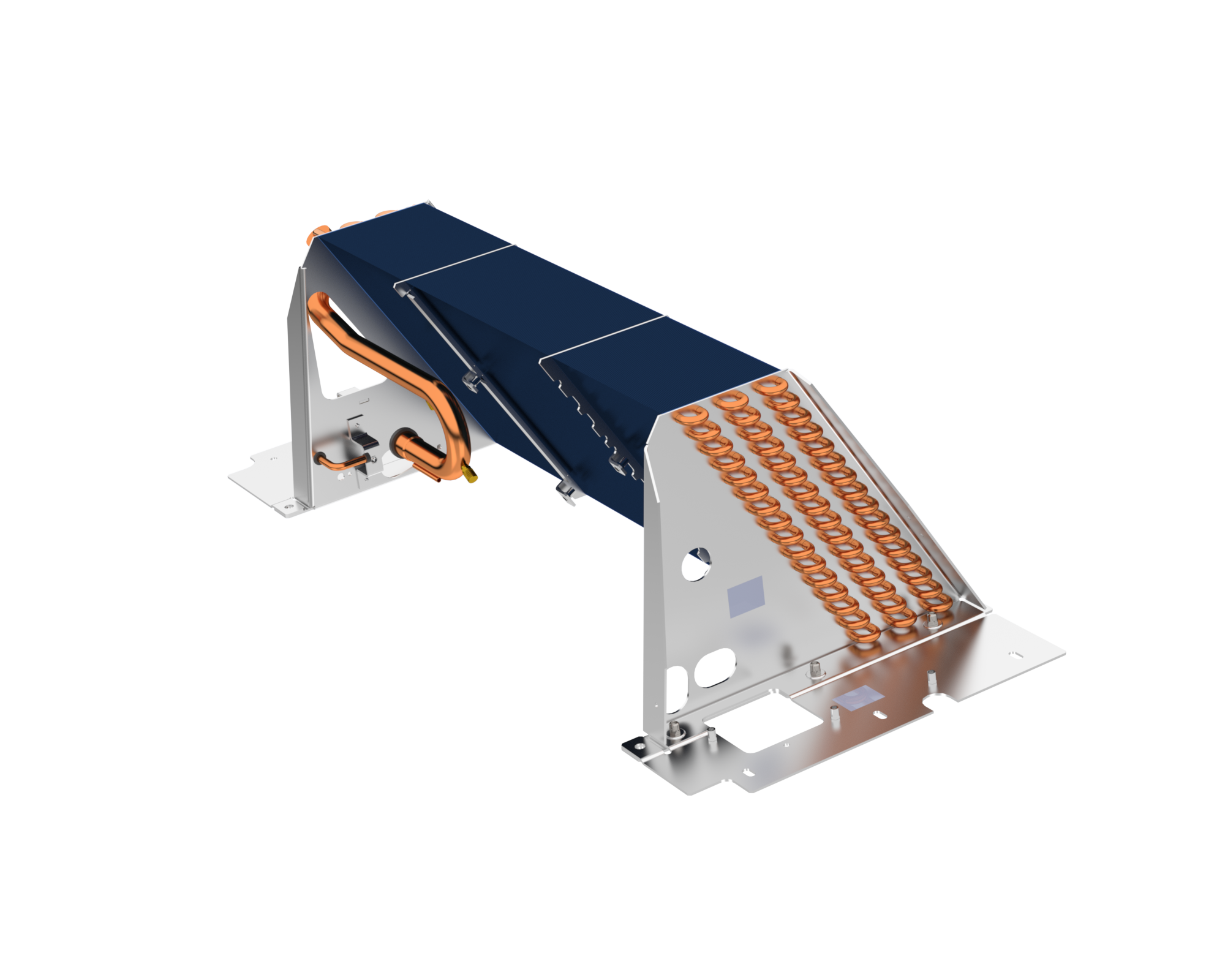

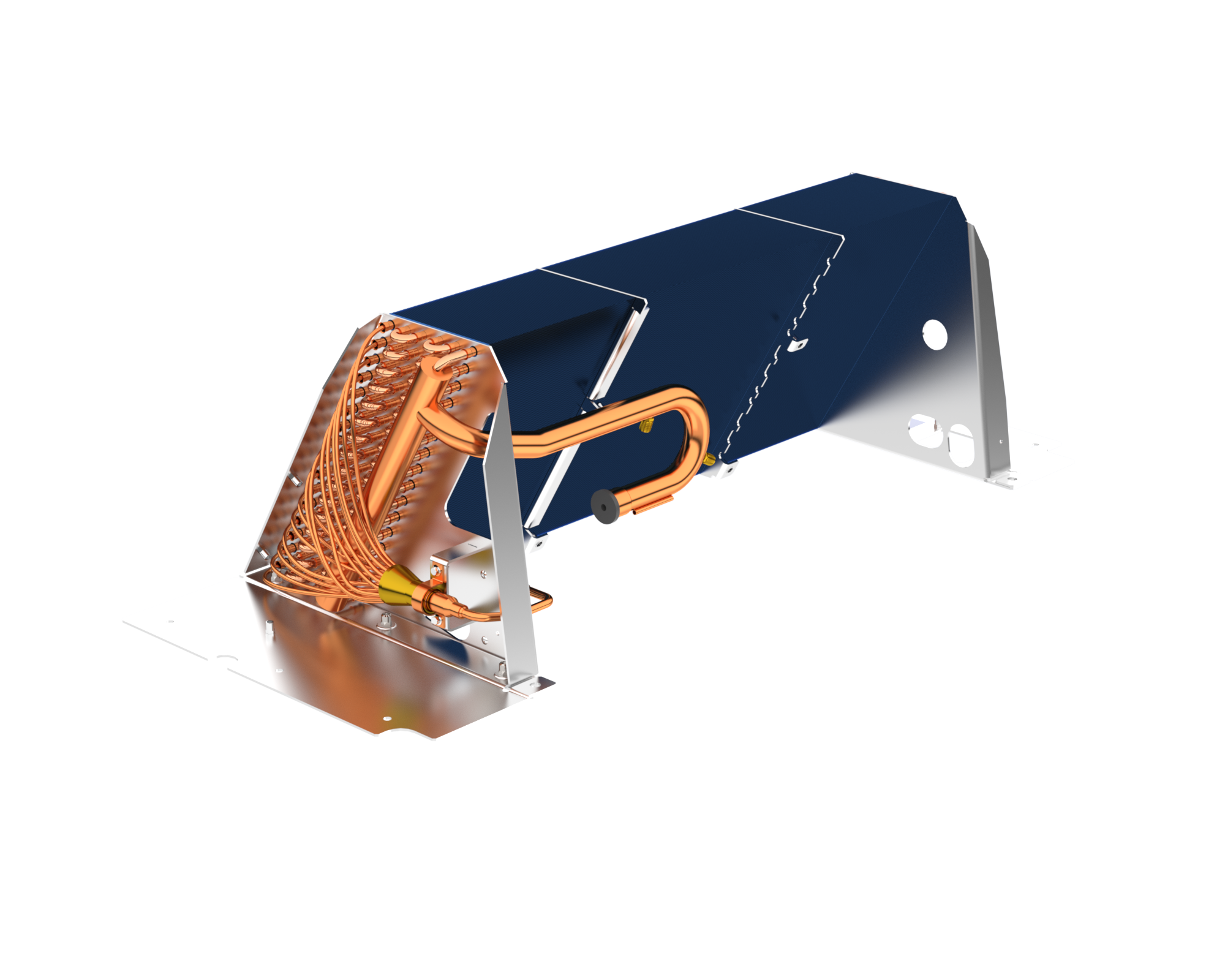

EVAPORATOR COIL
At KRN Heat Exchanger & Refrigeration Ltd., we design and manufacture high-performance evaporator coils that ensure efficient heat absorption and reliable cooling. These coils are a key part of the refrigeration cycle—responsible for converting liquid refrigerant into vapor by absorbing heat from air or process fluids.
Our evaporator coils are built for energy efficiency, long service life, and consistent cooling performance across residential, commercial, and industrial applications.
Design & Construction
- Tube Material: Seamless copper / copper-nickel / stainless steel
- Outer diameter: 3/8” (9.52 mm), 1/2” (12.7 mm), 5/8” (15.88 mm)
- Wall thickness: 0.28 – 1.0 mm (as per design)
- Fin Material: Aluminum (standard), copper or hydrophilic epoxy-coated fins for corrosion resistance
- Fin thickness: 0.12 – 0.25 mm
- Fin pitch: 1.6 mm – 3.2 mm
- Circuit Options: Single or multiple circuits with 2 – 12 rows (based on application)
- Frame/Casing: Galvanized steel, stainless steel, or aluminum
- Testing: 100% coils pressure tested at 400 psi (27.5 bar) air under water for leaks
